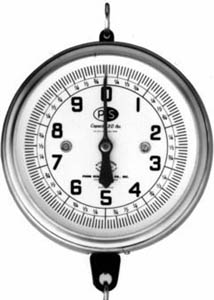

Series 1030    10 Inch Hanging Scales

| Hanging Scales | Fish Scales | Spring Scales |



	CAPACITY - Furnished in 15 lbs., 30 lbs., and            60 lbs. Pointer makes three revolutions to reach capacity.        Ball bearings make for smooth operation.        All dials covered by glass.        REVOLUTION INDICATOR        The slide is embossed to indicate each revolution.        CONSTRUCTION All-steel construction makes this scale rugged and accurate. Bronze bearings guarantee long wear and trouble-free service.        DESIGN Designed to meet requirements of the Bureau of Weights and Measures.
Flat Plates	Deep Pans
Heavy bows and forks support a 13" flat plate with black rim.	Removable stainless steel pan measuring  15" diameter × 4" deep is held by sturdy bows.  Pan allows drainage of excess water. AVAILABLE IN 10, 20, AND 30 KILOS SINGLE DIAL ONLY - ASK FOR INFORMATION
Square Pans	Deep Scoops
The square galvanized steel pan, made with three sides turned up, measures 16" × 19" × 3". Permanently riveted to the heavy steel of the baked enamel finished frame, the rigid construction will withstand much abuse. Available in 60 lb. capacity only.	These scoops are made from heavy-gauge  galvanized steel. Complete with head. Scoop measurements: For 15 lb. capacity scale, 14" x 14" x 8½"  For 30 lb. capacity scale, 14" x 14" x 8½"  For 60 lb. capacity scale, 16" x 20" x 12"

Model		Capacity	Price
1015 FS	Deep Pans	15 lb. × ½ oz.	$283.00
1030 FS	Deep Pans	30 lb. × 1 oz.	$290.00
1060 FS	Deep Pans	60 lb. × 1 oz.	$307.00
1015 FSD	Deep Pans	15 lb. × ½ oz.	$320.00
1030 FSD	Deep Pans	30 lb. × 1 oz.	$330.00
1060 FSD	Deep Pans	60 lb. × 1 oz.	$338.50
1015 B	Flat Plates	15 lb. × ½ oz.	$227.50
1030 B	Flat Plates	30 lb. × 1 oz.	$229.50
1060 B	Flat Plates	60 lb. × 1 oz.	$258.50
1015 BD	Flat Plates	15 lb. × ½ oz.	$233.50
1030 BD	Flat Plates	30 lb. × 1 oz.	$270.00
1060 BD	Flat Plates	60 lb. × 1 oz.	$293.00
1015 V	Deep Scoops	15 lb. × ½ oz.	$240.00
1030 V	Deep Scoops	30 lb. × 1 oz.	$256.50
1060 V	Deep Scoops	60 lb. × 1 oz.	$330.00
1015 VD	Deep Scoops	15 lb. × ½ oz.	$272.00
1030 VD	Deep Scoops	30 lb. × 1 oz.	$288.00
1060 S	Square Pan	60 lb. × 1 oz.	$354.00
1060 SD	Square Pan	60 lb. × 1 oz.

               The 15 lb. capacity scale has a dial of 5 lbs. × ½ oz. readings.
               The 30 lb. capacity scale has a dial of 10 lbs. × 1 oz. readings.
               The 60 lb. capacity scale has a dial of 20 lbs. × 1 oz. readings.
