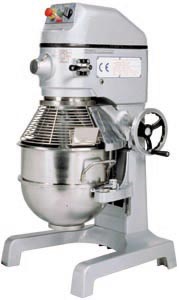

SP-30HI - 1 h.p. (.75kW), grease packed ball bearing, air-cooled,
115/60/1 (50Hz available)
SP-30PZ - 1 1/2 h.p. heavy duty compact
pizza special 220/60/1
Spar Mixer controls are
front-mounted to give easy access in cramped kitchen environments.
The following controls are standard on all Spar Mixers: separate
start and emergency stop buttons so operators can shut down the
mixer immediately in an emergency situation, a 15-minute timer which
shuts off the machine after set time has elapsed, and thermal
Cord and Plug:
6 ft. flexible three
wire cord and ground prong.
hardened alloy, precision milled gears operate with planetary
action. Gears are packed in a long-lasting, high pressure grease.
Planetary gears are driven by an oversized cog-wheel, which is in
turn driven by a cogged belt powered by the motor drive shaft.
Cogged belt is a long-lasting, rugged fiber/rubber composite. This
unique design yields high-torque mixing power while avoiding the
high cost encountered repairing direct-drive transmission
1. Low Speed 99, 69
2. Intermediate Speed 176, 123
3. High Speed 320, 224
Bowls and Agitators:
equipment includes a 31.7Qt. (30L) high quality stainless steel
bowl, dough hook, flat beater, and whip. A sturdy hand lever on the
body column raises and lowers the bowl as well as locking in place
at the top and bottom positions.
Standard is the No. 12
hub for powering a standard size vegetable slicer/cheese shredder
and a standard size meat mincer/grinder.
Top (transmission cover):
metallic bronze epoxy enamel
Bottom: metallic gray epoxy enamel
Carton Size: Depth 29in.(73cm) Width 29in.(73cm) Height 51in.(130cm)
Cartons are affixed to an undersized skid (pallet), the weight and dimensions
of this skid are not included above and may vary from shipment to
